Humimeter BLW Moisture Meter for Round Timber and Split Logs

£735.00 ex. VAT

Excluding taxes. Shipping calculated at checkout.

In stock

Shipped from UK

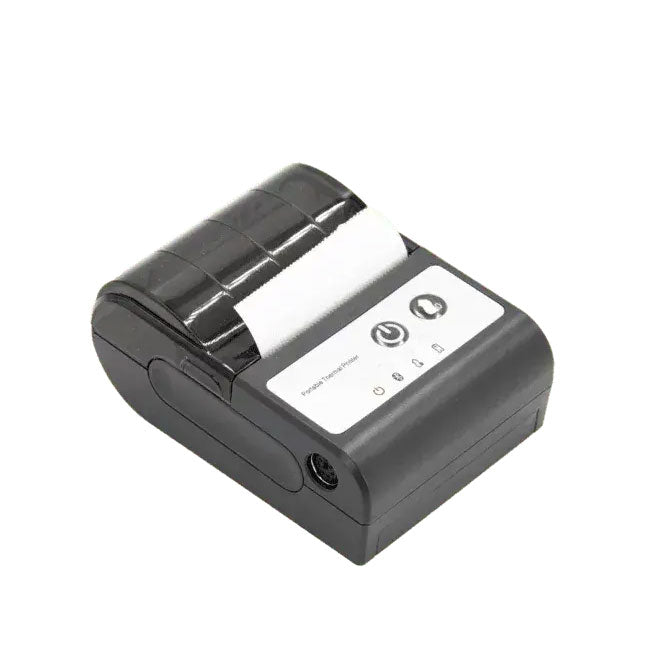

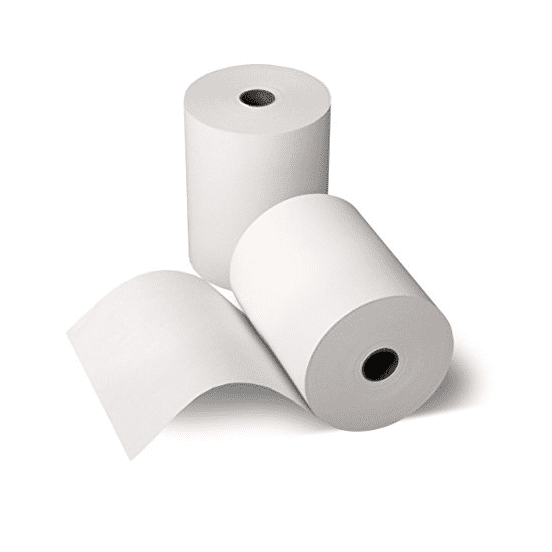

Options BLW Humimeter without USB Data Interface Module- £735.00 BLW Humimeter with USB Data Interface Module - £1050.00 Thermo printer - £390.90 Test Block - £104.90 Paper Rolls for Thermo Printer 5 Rolls - £12.00

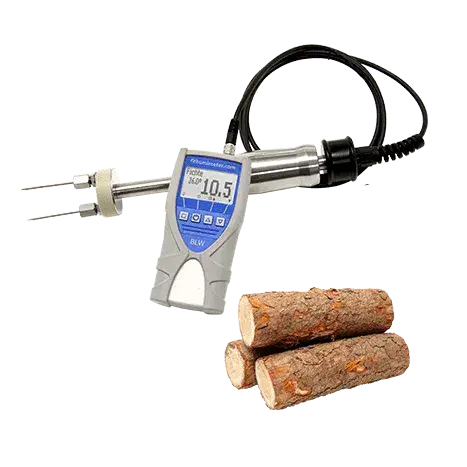

Round timber and split logs moisture meter with ram electrode

High measuring depth
Easy to use
Measurement within seconds
Lifetime Support

Features

Due to the high measuring depth and the high measuring range (up to 60% water content), the humimeter BLW wood moisture meter is ideal for operators of heating systems with biomass as well as for wood suppliers or buyers of round timber and split logs with professional billing. It allows easy and quick measurement of wood moisture.

Benefits

High measuring range up to 60% water content
Quality control of firewood on site
Automatic averaging
High quality ram electrode

Technical data

Measuring range	10 to 60% water content (depending on the type of wood), corresponds to 150% wood moisture
Resolution	0,1 %
Temperature compensation	Automatically
Measurement result	Within seconds without sample preparation
Memory function	Hold function, datalog for 10.000 logs with measuring point report
Dimensions	157 x 75 x 30 mm
Weight of basic device	265 g (with batteries)
Weight of ram electrode	1500 g
Power Supply	4 x 1,5 Volt AA Alkaline batteries
Menu languages	English, German, French, Italian, Spanish, Portuguese, Czech, Polish, Russian, International

Handling and measurement process

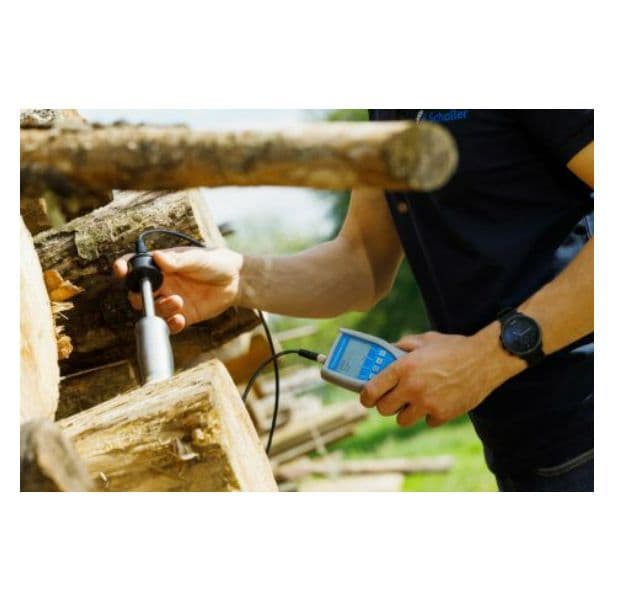

To measure, choose a part of the wood WITHOUT bark, branches, pitch pockets or cracks. Switch on the humimeter BLW wood moisture meter, now plug the sensor cable into the socket in the correct position and fix the plug by turning the screw connection. Select the correct wood species or wood group and drive the ram or hand probe in across the grain direction.

You can immediately read the measured value from the display and save it. To increase the measurement accuracy, carry out several measurements and save them. The device automatically calculates the mean value from the stored measured values in a matter of seconds.

With the standard nails, the device is suitable for determining the moisture in firewood and measures the wettest point over the entire penetration depth. With the insulated nails (item no.: 11482) you can determine the moisture at a defined measuring depth, as these only measure at the tip.

Download the Humimeter BLW Moisture Meter for Round Timber and Split Logs Datasheet (PDF, 1.3MB - opens in new window)
