Pedestals suitable for crop storage depths of 5.5m – 9.5m.

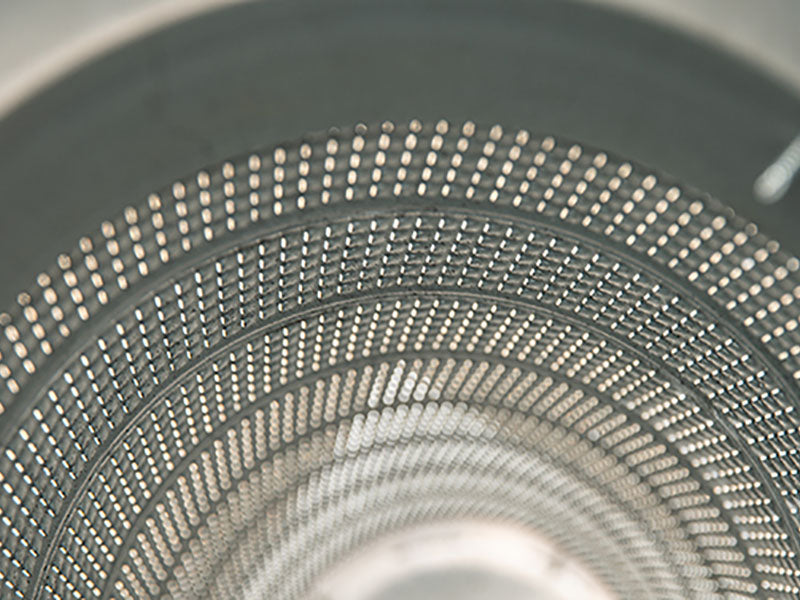

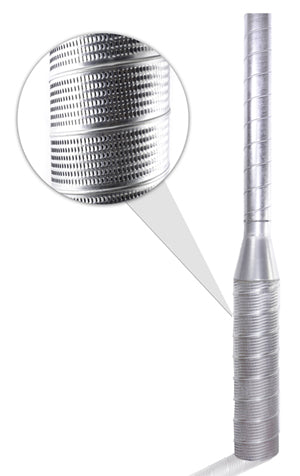

Base perforated with louvred slots to maintain equal air distribution.
Specifications
Type: Metal Louvred
Height: 5.5m can be extended to 9.5m
Base unit: 1.2m x 300mm louvred, perforated base unit
Reducing Cone: 300mm to 200mm steel

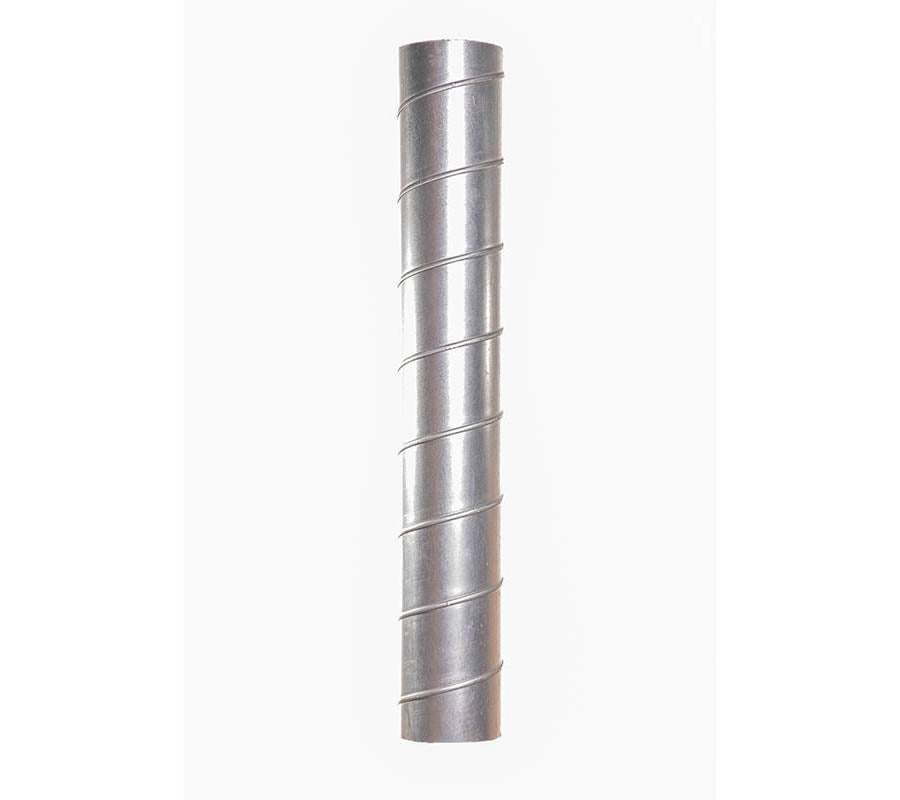

Extension Pipes: 2m x 200mm or 1m x 200mm steel extension pipes
Base plate: 400mm x 400mm
Suggested crop storage depth: 5m – 9m. No filter required for OSR
Fan Recommendation (not included): PV400
How to space pedestals in your grain store
| STORAGE DEPTH | PEDESTAL SPACING |
|---|---|
| 2.5-3.5m | Storage depth plus 100% |
| 3.6-5.0m | Storage depth plus 75% |
| 5.1m and above | Storage depth plus 50% |
