Minibatt+ Brushless

The world's smallest combine harvester

Plan and organise your harvests more efficiently

Using the MINIBATT+ allows you to obtain precise information on the condition of the grain, making it easier to plan your harvests. A well-organised harvest is a key factor in maximising your yield and ensuring the quality of your production. By adjusting harvest timing according to grain condition, you can avoid unnecessary losses and harvest at the optimal time to ensure superior quality.

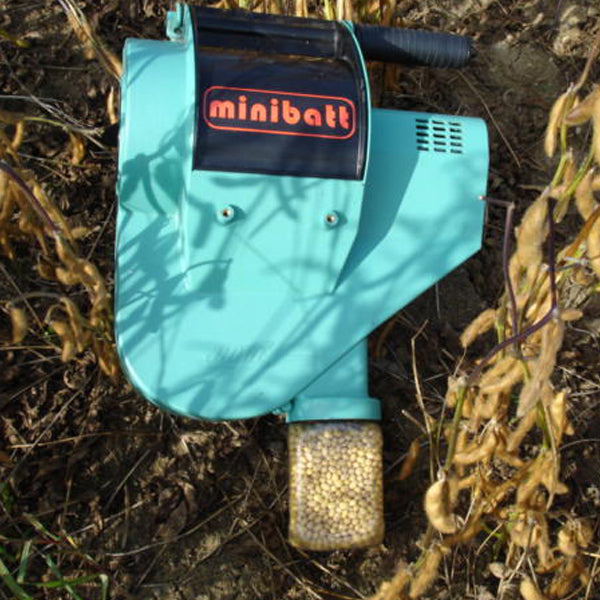

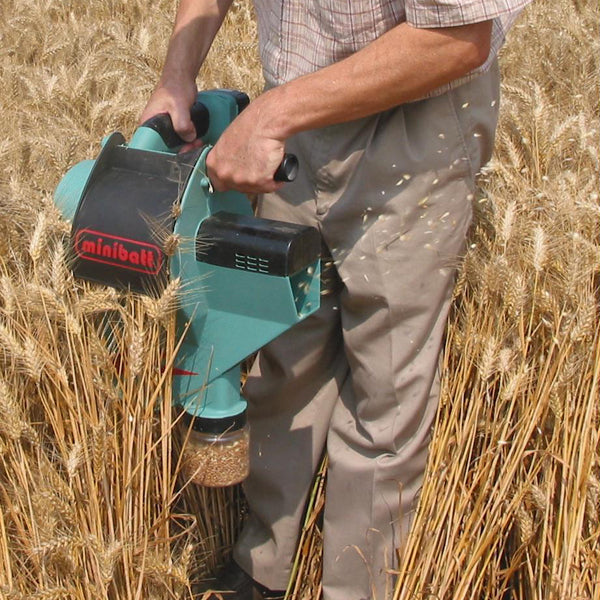

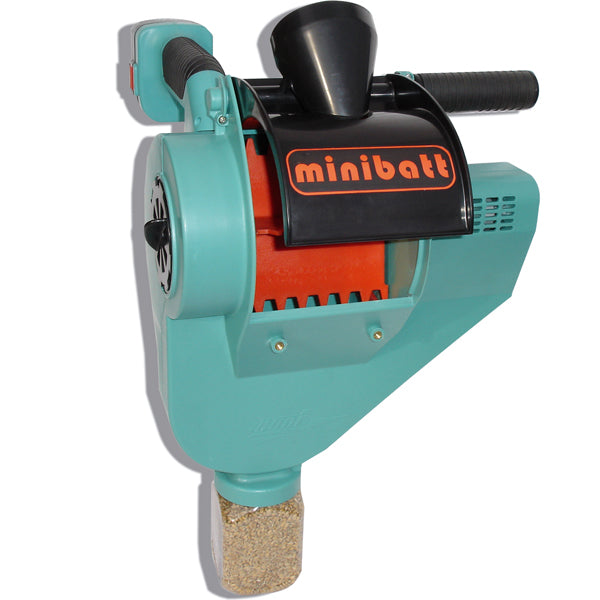

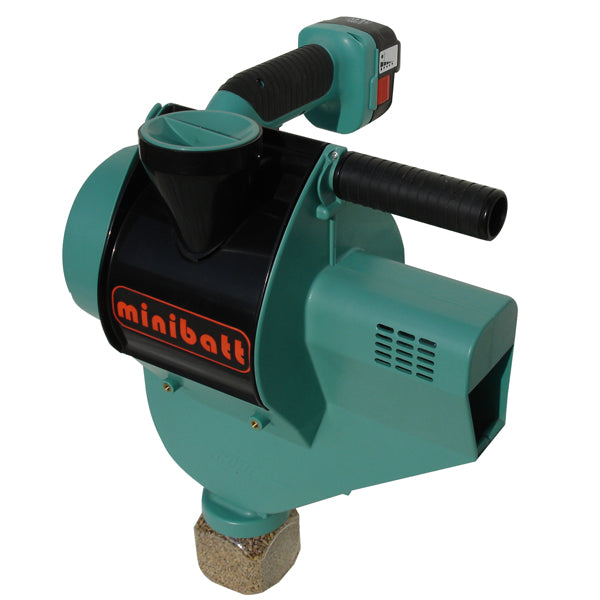

The Minibatt+ sample harvester is a lightweight cordless combine harvester suitable for taking quick and accurate in field samples. The Minibatt+ has variable speed, variable aspiration and a range of concaves to enable the sampling of a wide range of combinable crops. The Minibatt+ will harvest approximately 100g per minute allowing a large range of samples to be collected hassle free.

Technical specifications

Each Minibatt+ comes with;

• Rugged flight case for easy storage and transportation
• 2000mAh Lithium Ion re-chargeable battery
• Mains charger
• 2x 1 Litre sample collection jar
• 4 interchangable concaves suitable for Cereals, OSR, Peas & Beans
• Removable de-awning plate for use with barley and awned crops

Technical data:

• Rotation speed when empty : 1,400 to 2,000 r.p.m
• Cylinder diameter : 160 mm
• Width of cylinder : 145 mm
• Air flow speed on exit from duct : 4 to 8 m/s
• Container capacity : 720 ml
• Weight : 3,3 kg
• Flight case : 11,4 Kg, H 380 x L 475 x W 390

Other:

• Noise level :80dBa
• Voltage: 14.4V DC
• Charging time : 60 minutes
• Battery capacity : 3000 mAh

Stationary kit available for mounting Minibatt+

Suitable for use with Oil Seed Rape Crops
