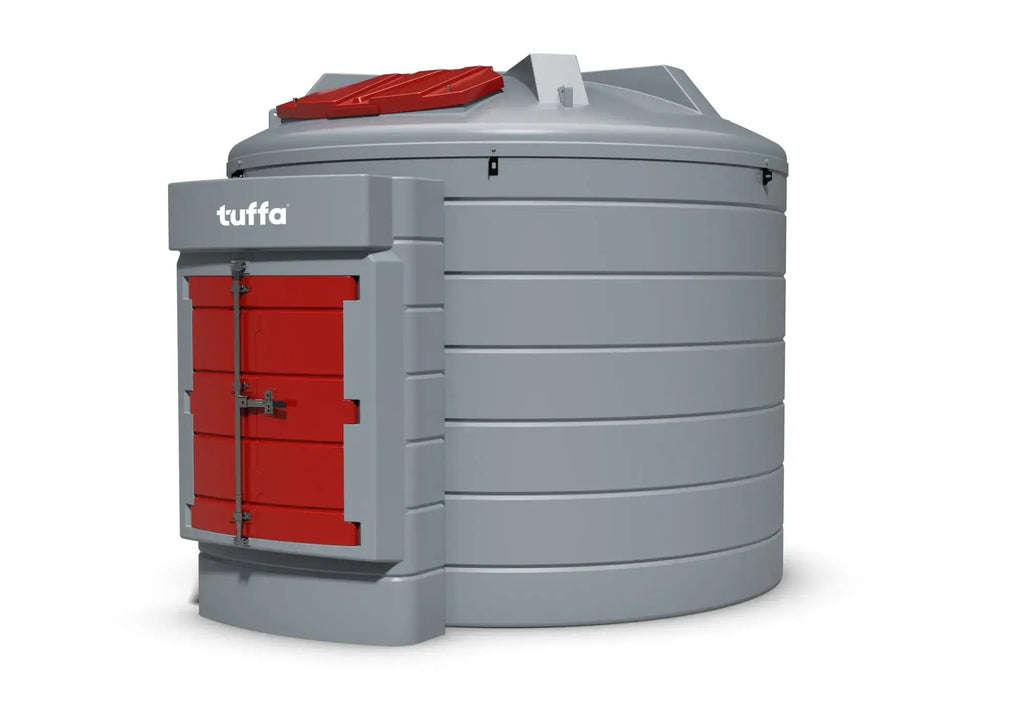

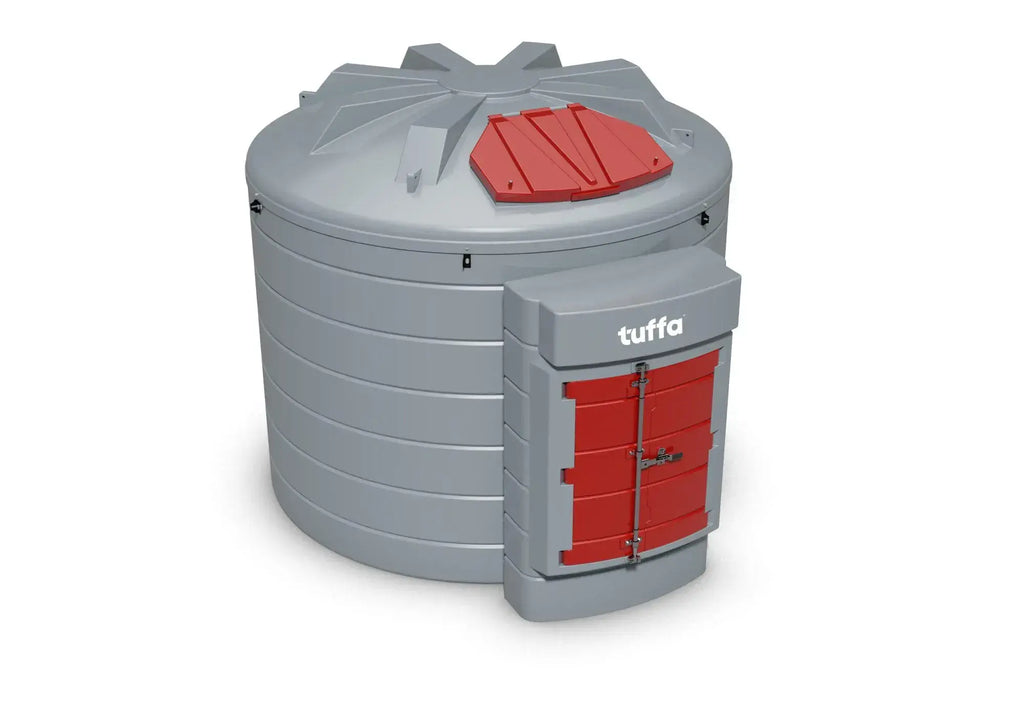

The 10,000-litre plastic bunded diesel tank is an above-ground diesel fuel station consisting of a primary tank (which holds the fuel) surrounded by a bund fitted with a cabinet.
This tank is compatible with white or red diesel and HVO100 or HVO diesel blends. This bunded diesel tank is safe and durable with a 20-year design life and 10-year warranty, when registered.

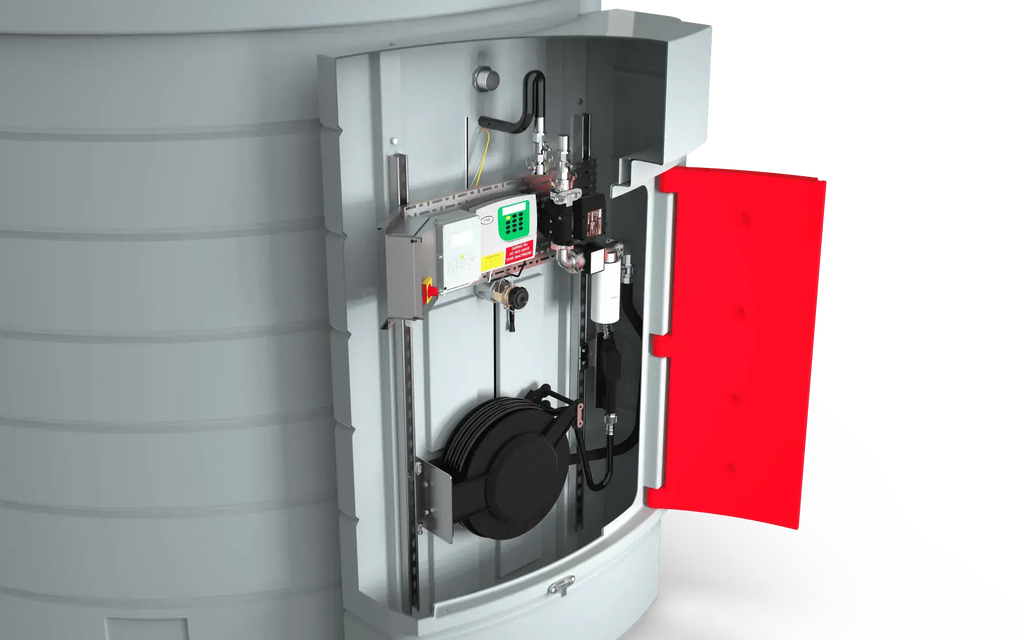

The cabinet safely houses tier-one ancillary equipment, including an external pump, K33 mechanical flowmeter, automatic shut-off nozzle and FMS gauge and alarm. Optional extras and upgrades include a fuel management system, pulse meter and high-flow pump.
The 10,000-litre plastic bunded diesel tank is complete and ready to use, requiring only a hard, flat concrete base and an electrical connection (if not choosing the 12/24V version).
- K44 pulse meter – allows connection to a separate fuel management system.
- Hose reel – a self-retracting hose reel with 10m delivery hose.
- Pump options – 12V, 24V and even higher flow rate pumps available upon request.
- Fuel management system – a fuel management system fitted within the lockable cabinet that allows authorised users to dispense the fuel from the tank.
-
HDA level sensor – the fuel management system above also allows for connection to a compatible 4-20mA level probe (accurate to +/-0.5% ) to enable monitoring of the storage tank contents, including current levels and dispensed quantities, which also reports to the supplied software.
Download the Tank Drawing (PDF, 520KB - opens in new window)
Download the Tank Drawing with Cabinet (PDF, 520KB - opens in new window)
Download the Cabinet Drawing - Internal Dimensions (PDF, 520KB - opens in new window)
Download the AdBlue® and Diesel Tanks Product Guide (PDF, 14MB - opens in new window)
